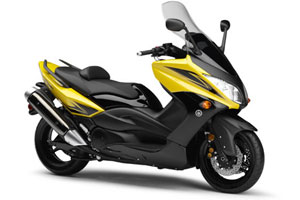

2009 Yamaha TMAX

Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum Find out more: 2012 Yamaha TMAX Preview Two-wheel fun and performance that's perfect for city commutes and touring adventures! 2009 Yamaha TMAX Follow-up Review	Yamaha TMAX 2009
Manufacturer	Yamaha
Year	2009
Model	TMAX
Category	Scooter
Price	10499.00
Warranty (months)	12
Engine type	4-stroke
Cylinder	L2
Valvetrain	DOHC, 4 valves per cylinder
Displacement (cc)	499.0
Bore (mm)	66
Stroke (mm)	73
Compression ratio	11.1
Torque	34.2 lb-ft @ 3,000 rpm
Fuel system	Mikuni 31mm fuel injection
Ignition	TCI
Starter	Electric
Gearbox operation	automatic
Final drive	Enclosed chain
Front suspension type	43-mm fork
Front suspension travel (mm)	120
Rear suspension type	Single shock swingarm
Rear suspension travel (mm)	116
Front brakes	Dual 267-mm discs
Rear brakes	267-mm disc
Front tire - Width	120
- Profile	70
- Wheel diameter	15
Rear tire - Width	160
- Profile	60
- Wheel diameter	15
Length (mm)	2195
Width (mm)	775
Height (mm)	1445
Weelbase (mm)	1580
Seat height (mm)	800
Ground clearance (mm)	125
Weight (kg)	222
Fuel capacity (L)	15
Colour(s)	Dark Metallic Blue,Reddish Yellow (+$150)
