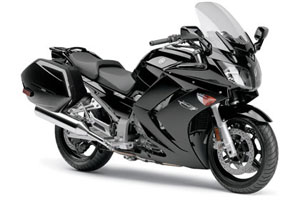

2009 Yamaha FJR1300A

Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum	Yamaha FJR1300A 2009
Manufacturer	Yamaha
Year	2009
Model	FJR1300A
Category	Touring
Price	20099.00
Warranty (months)	12
Engine type	4-stroke
Cylinder	L4
Valvetrain	DOHC 16 Valves
Cooling system	Liquid
Displacement (cc)	1298.0
Bore (mm)	79.0
Stroke (mm)	66.2
Compression ratio	10.8:1
Torque	99.1 lb-ft @ 7,000 rpm
Fuel system	Mikuni 42 mm Mikuni throttle body F.I.
Ignition	TCI
Gearbox speed	5
Gearbox operation	Manual
Final drive	shaft
Front suspension type	48-mm adjustable fork
Rear suspension type	Link Monocross
Front brakes	320-mm Dual discs with ABS
Rear brakes	282-mm disc with ABS
Front tire - Width	120
- Profile	70
- Wheel diameter	17
Rear tire - Width	180
- Profile	55
- Wheel diameter	17
Length (mm)	2230
Width (mm)	750
Height (mm)	1450
Weelbase (mm)	1545
Seat height (mm)	805 to 825
Ground clearance (mm)	130
Weight (kg)	291
Fuel capacity (L)	25
Colour(s)	Metallic Black
