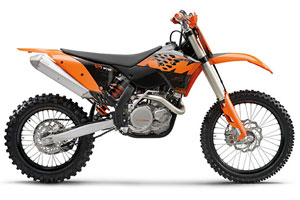

KTM 530 XC-W 2009

Manufacturer KTM
Year 2009
Model 530 XC-W
Category Competition
Engine type 4-stroke
Cylinder 1
Valvetrain SOHC, 4 valves per cylinder
Cooling system Liquid
Displacement (cc) 510.4
Bore (mm) 95.0
Stroke (mm) 72.0
Compression ratio 11.9:1
Fuel system Keihin MX FCR 39
Ignition Kokusan digital 4K-3B
Starter Electric/kick
Gearbox speed 6
Gearbox operation Wide-ratio manual
Final drive X-ring chain
Front suspension type 48-mm WP USD
Front suspension travel (mm) 300
Rear suspension type WP PDS mono shock
Rear suspension travel (mm) 335
Front brakes 260-mm disc with Brembo double piston
Rear brakes 220-mm disc with Brembo double piston
Front tire
- Width
- Profile 90
- Wheel diameter 21
Rear tire
- Width
- Profile 100
- Wheel diameter 18
Weelbase (mm) 1475
Seat height (mm) 985
Ground clearance (mm) 380
Weight (kg) 112
Fuel capacity (L) 9.2
Colour(s) Orange/Black
