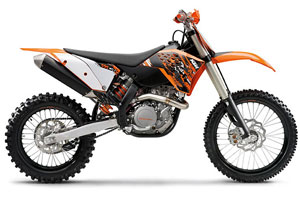

KTM 505 XC-F 2009

Manufacturer KTM
Year 2009
Model 505 XC-F
Category Competition
Engine type 4-stroke
Cylinder 1
Valvetrain SOHC, 4 valves per cylinder
Cooling system Liquid
Displacement (cc) 477.5
Bore (mm) 100.0
Stroke (mm) 60.8
Compression ratio 12.5:1
Fuel system Keihin MX FCR 39
Ignition Kokusan digital SX
Starter Electric
Gearbox speed 5
Gearbox operation Semi-close-ratio manual
Final drive Chain
Front suspension type 48-mm WP USD
Front suspension travel (mm) 300
Rear suspension type WP PDS mono shock
Rear suspension travel (mm) 335
Front brakes 260-mm disc with Brembo double piston
Rear brakes 220-mm disc with Brembo double piston
Front tire
- Width
- Profile 100
- Wheel diameter 21
Rear tire
- Width
- Profile 100
- Wheel diameter 18
Weelbase (mm) 1475
Seat height (mm) 985
Ground clearance (mm) 380
Weight (kg) 108
Fuel capacity (L) 9.0
Colour(s) Orange/Black
