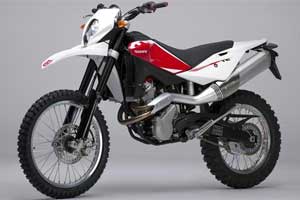

2010 Husqvarna TE 630

Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum	Husqvarna TE 630 2010
Manufacturer	Husqvarna
Year	2010
Model	TE 630
Category	Dual-Purpose
Warranty (months)	24
Engine type	4-stroke
Cylinder	1
Valvetrain	4-valves
Cooling system	Liquid
Displacement (cc)	600.1
Bore (mm)	100
Stroke (mm)	76.4
Compression ratio	12.4
Fuel system	Electronic fuel injection
Ignition	Electronic CDI
Starter	Electric
Gearbox speed	6
Gearbox operation	Manual
Final drive	Chain
Front suspension type	45-mm upside down Marzocchi fork
Front suspension travel (mm)	270
Rear suspension type	SACHS adjustable monoshock
Rear suspension travel (mm)	320
Front brakes	260-mm disc BREMBO
Rear brakes	220-mm floating disc BREMBO
Front tire - Width	90
- Profile	90
- Wheel diameter	21
Rear tire - Width	140
- Profile	80
- Wheel diameter	18
Length (mm)	2260
Width (mm)	820
Height (mm)	1240
Weelbase (mm)	1485
Seat height (mm)	945
Ground clearance (mm)	300
Weight (kg)	150
Fuel capacity (L)	12
Colour(s)	Red/White
