Specifications

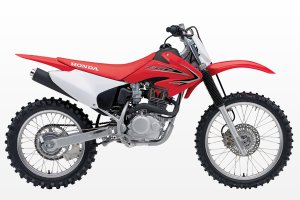

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum	Honda CRF230F 2011
Manufacturer	Honda
Year	2011
Model	CRF230F
Category	Leisure
Price	4499.00
Engine type	4-stroke
Cylinder	1
Valvetrain	SOHC, 2 valves per cylinder
Cooling system	Air
Displacement (cc)	223.0
Bore (mm)	65.5
Stroke (mm)	66.2
Compression ratio	9.0:1
Carburetion (mm)	Single 28-mm piston-valve carburator
Gearbox speed	6
Gearbox operation	Manual
Final drive	O-ring sealed chain
Front suspension type	37-mm leading axle Showa fork
Front suspension travel (mm)	216
Rear suspension type	Pro-Link Showa single shock, adjustable spring
Rear suspension travel (mm)	230
Front brakes	240-mm disc, w/ twin piston caliper
Rear brakes	Drum
Front tire - Width	80
- Profile	100
- Wheel diameter	21
Rear tire - Width	100
- Profile	100
- Wheel diameter	18
Weelbase (mm)	1372
Seat height (mm)	878
Ground clearance (mm)	305
Weight (kg)	113
Fuel capacity (L)	7.0
Colour(s)	Extreme Red
