Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum Find out more: 2009 Honda DN-01 Revisited - Review 2009 Honda DN-01 Review	Honda DN-01 2009

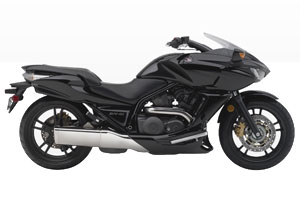

Manufacturer	Honda
Year	2009
Model	DN-01
Category	Touring
Price	17622.00
Warranty (months)	12
Engine type	4-stroke
Cylinder	V2
Valvetrain	SOHC, 4 valves per cylinder
Cooling system	Liquid
Displacement (cc)	680.0
Bore (mm)	81.0
Stroke (mm)	66.0
Compression ratio	10:01
Fuel system	PGM-FI fuel injection
Gearbox operation	HFT with internal hydraulic control
Final drive	shaft
Front suspension type	41 mm telescopic fork
Front suspension travel (mm)	106
Rear suspension type	Single shock with spring preload adjustment
Rear suspension travel (mm)	120
Front brakes	Dual 296-mm discs with ABS
Rear brakes	276-mm disc with ABS
Front tire - Width	130
- Profile	70
- Wheel diameter	ZR17
Rear tire - Width	190
- Profile	50
- Wheel diameter	ZR17
Weelbase (mm)	1605
Seat height (mm)	690
Fuel capacity (L)	15.1
Colour(s)	Graphite Black
