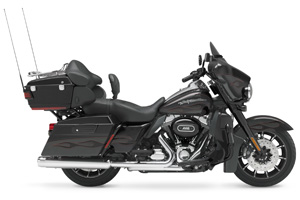

2010 Harley-Davidson FLHTCUSE5-BLK

Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum	Harley-Davidson FLHTCUSE5-BLK CVO Ultra Classic Electra Glide 2010
Manufacturer	Harley-Davidson
Year	2010
Model	FLHTCUSE5-BLK
Model	CVO Ultra Classic Electra Glide
Category	Touring
Price	43359.00
Warranty (months)	24
Engine type	4-Stroke
Cylinder	V2
Valvetrain	Pushrod, 2 valves per cylinder
Cooling system	Air
Displacement (cc)	1803.0
Bore (mm)	101.6
Stroke (mm)	111.2
Compression ratio	9.15:1
Torque	115 lb-ft @ 3,750 rpm
Fuel system	ESPFI
Starter	Electric
Gearbox speed	6
Gearbox operation	Manual
Final drive	Belt
Front suspension type	41.3 cartridge-style telescopic fork
Front suspension travel (mm)	117
Rear suspension type	Swing arm with air-adjustable shocks
Rear suspension travel (mm)	76
Front brakes	Dual 300-mm discs with ABS
Rear brakes	300-mm disc with ABS
Front tire - Width	130
- Profile	80
- Wheel diameter	17
Rear tire - Width	180
- Profile	65
- Wheel diameter	16
Length (mm)	2494
Width (mm)	965
Height (mm)	1448
Weelbase (mm)	1613
Seat height (mm)	Laden 695.96; Unladen 756.92
Ground clearance (mm)	130
Weight (kg)	402
Fuel capacity (L)	22.7
Colour(s)	Mist Black / Dark Slate with flame graphics.
