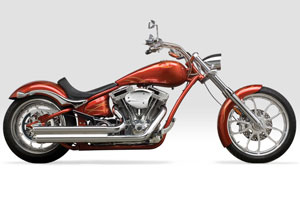

2009 Big-Dog Mastiff

Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum	Big-Dog Mastiff 2009
Manufacturer	Big-Dog
Year	2009
Model	Mastiff
Category	Cruiser
Warranty (months)	24
Engine type	4-stroke
Cylinder	V2
Valvetrain	Pushrod, 2 valves per cylinder
Cooling system	Air
Displacement (cc)	1917.0
Bore (mm)	104.8
Stroke (mm)	111.1
Compression ratio	9.6:1
Fuel system	Carburetor
Starter	Electric
Gearbox speed	6
Gearbox operation	Manual
Final drive	Belt
Front suspension type	41 mm cartridge fork
Rear suspension type	Dual shock unit swing arm
Front brakes	4 piston calipers with discs
Rear brakes	4 piston calipers with discs
Front tire - Width	120
- Profile	70
- Wheel diameter	21
Rear tire - Width	300
- Profile	36
- Wheel diameter	21
Length (mm)	2616
Weelbase (mm)	1968
Seat height (mm)	616
Ground clearance (mm)	101.6
Weight (kg)	512
Fuel capacity (L)	14.7
