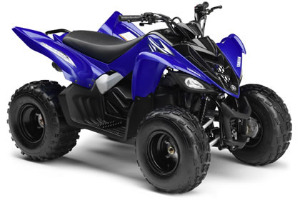

2011 Yamaha Raptor 90

Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum	Yamaha Raptor 90 2011
Manufacturer	Yamaha
Year	2011
Model	Raptor 90
Category	Youth
Price	3549.00
Warranty (months)	6
Engine type	4-stroke
Cylinder	1
Valvetrain	SOHC, 2 valves per cylinder
Cooling system	Air
Displacement (cc)	88.0
Bore (mm)	47.0
Stroke (mm)	51.0
Compression ratio	10.2:1
Fuel system	22mm SVR
Ignition	CDI
Starter	Electric
Gearbox operation	Automatic CVT
Drive system	2WD
Final drive	Chain
Front suspension type	Double wishbone, preload adjustable
Front suspension travel (mm)	111.7
Rear suspension type	Swingarm, preload adjustment
Rear suspension travel (mm)	83.8
Front brakes	Dual Sealed drums
Rear brakes	Hydraulic disc
Front tires width (inch)	7
Front tires height (inch)	18
Front tires inner diameter (inch)	8
Rear tires width (inch)	9
Rear tires height (inch)	18
Rear tires inner diameter (inch)	8
Length (mm)	1490
Width (mm)	885
Height (mm)	910
Weelbase (mm)	1010
Seat height (mm)	654
Ground clearance (mm)	100
Weight (kg)	116
Fuel capacity (L)	4.8
Colour(s)	Yamaha Blue, Black/ White
