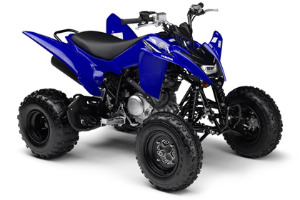

2011 Yamaha Raptor 125

Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum	Yamaha Raptor 125 2011
Manufacturer	Yamaha
Year	2011
Model	Raptor 125
Category	Youth
Price	4599.00
Warranty (months)	6
Engine type	4-stroke
Cylinder	1
Valvetrain	SOHC, 2 valves per cylinder
Cooling system	Liquid cooled
Displacement (cc)	124.0
Bore (mm)	54.0
Stroke (mm)	54.0
Compression ratio	10.0:1
Fuel system	Mikuni BSR29
Ignition	DC-CDI
Starter	Electric
Gearbox speed	5
Gearbox operation	Manual
Drive system	2WD
Final drive	Chain
Front suspension type	Double wishbone, preload adjustable
Front suspension travel (mm)	190.5
Rear suspension type	Swingarm, preload adjustment
Rear suspension travel (mm)	200.6
Front brakes	Dual hydraulic discs
Rear brakes	Single hydraulic disc
Front tires width (inch)	6
Front tires height (inch)	19
Front tires inner diameter (inch)	10
Rear tires width (inch)	9
Rear tires height (inch)	18
Rear tires inner diameter (inch)	8
Length (mm)	1610
Width (mm)	1018
Height (mm)	1010
Weelbase (mm)	1110
Seat height (mm)	715
Ground clearance (mm)	85
Weight (kg)	136
Fuel capacity (L)	9.0
Colour(s)	Racing Blue
