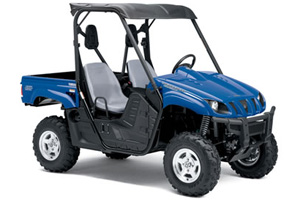

Yamaha Rhino 700 FI Special Edition 2008
|
| Manufacturer |
Yamaha
|
| Year |
2008
|
| Model |
Rhino 700 FI Special Edition
|
| Category |
Utility
|
| Price |
14699.00
|
| Warranty (months) |
6
|
| Engine type |
4-stroke
|
| Cylinder |
1
|
| Valvetrain |
SOHC 4 valves
|
| Cooling system |
Liquid
|
| Displacement (cc) |
686.0
|
| Bore (mm) |
102.0
|
| Stroke (mm) |
84.0
|
| Compression ratio |
9.2:1
|
| Ignition |
TCI
|
| Starter |
Electric with auto decompression
|
| Gearbox operation |
Ultramatic
|
| Drive system |
On-command 2WD/4WD/4WD diff lock/shaft drives
|
| Front suspension type |
Independent Double Wishbone
|
| Front suspension travel (mm) |
185
|
| Rear suspension type |
Independent Double Wishbone
|
| Rear suspension travel (mm) |
185
|
| Front brakes |
Dual Disc
|
| Rear brakes |
Dual Hydraulic Disc and Parking Brake
|
| Front tires width (inch) |
AT25
|
| Front tires height (inch) |
8
|
| Front tires inner diameter (inch) |
12
|
| Rear tires width (inch) |
AT25
|
| Rear tires height (inch) |
10
|
| Rear tires inner diameter (inch) |
12
|
| Length (mm) |
2885
|
| Width (mm) |
1385
|
| Height (mm) |
1853
|
| Weelbase (mm) |
1910
|
| Ground clearance (mm) |
280
|
| Weight (kg) |
510
|
| Fuel capacity (L) |
30
|
| Rear rack capacity (kg) |
181
|
| Towing capacity (kg) |
550
|
| Colour(s) |
Yamaha Blue
|
|
|
|
|
|
|
|
|
|
|
