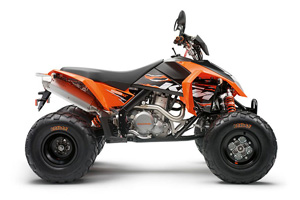

KTM 525 XC 2010
|
| Manufacturer |
KTM
|
| Year |
2010
|
| Model |
525 XC
|
| Category |
Sport
|
| Engine type |
4-stroke
|
| Cylinder |
1
|
| Valvetrain |
SOHC, 4 valves per cylinder
|
| Cooling system |
Liquid
|
| Displacement (cc) |
510.4
|
| Bore (mm) |
95.0
|
| Stroke (mm) |
72.0
|
| Compression ratio |
11.0:1
|
| Ignition |
Kokusan digital
|
| Starter |
Electric
|
| Gearbox speed |
5
|
| Gearbox operation |
Semi-close-ratio manual with reverse
|
| Drive system |
2WD
|
| Final drive |
X-ring chain
|
| Front suspension type |
Fully adjustable, twin A-arms
|
| Front suspension travel (mm) |
275
|
| Rear suspension type |
PDS mono shock, adjustable swingarm
|
| Rear suspension travel (mm) |
272
|
| Front brakes |
Magura Dual 180-mm discs with 4 pistons calipers
|
| Rear brakes |
Magura 200-mm disc
|
| Front tires width (inch) |
7
|
| Front tires height (inch) |
21
|
| Front tires inner diameter (inch) |
10
|
| Rear tires width (inch) |
11
|
| Rear tires height (inch) |
20
|
| Rear tires inner diameter (inch) |
9
|
| Weelbase (mm) |
1280
|
| Seat height (mm) |
820
|
| Ground clearance (mm) |
290
|
| Weight (kg) |
168
|
| Fuel capacity (L) |
13.4
|
| Colour(s) |
Orange/Black
|
|
|
|
|
|
|
|
|
|
|
