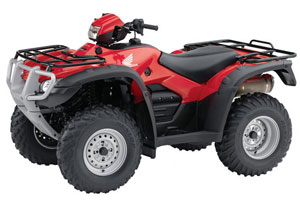

2009 Honda TRX500FG Canadian Trail Edition Rubicon

Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum	Honda TRX500FG Canadian Trail Edition Rubicon 2009
Manufacturer	Honda
Year	2009
Model	TRX500FG Canadian Trail Edition Rubicon
Category	Multi Purpose
Price	10399.00
Warranty (months)	12
Engine type	4-stroke
Cylinder	1
Valvetrain	OHV, 4 valves per cylinder
Cooling system	Liquid
Displacement (cc)	499.0
Bore (mm)	92.0
Stroke (mm)	75.0
Compression ratio	9.2:1
Starter	Electric
Gearbox operation	CVT automatic with reverse
Drive system	2WD/4WD
Final drive	Shaft
Front suspension type	Independent double wishbone, hydraulic shocks
Front suspension travel (mm)	170
Rear suspension type	Swingarm with adjustable shock
Rear suspension travel (mm)	170
Front brakes	Dual 180-mm discs
Rear brakes	Sealed drum
Front tires width (inch)	8
Front tires height (inch)	25
Front tires inner diameter (inch)	12
Rear tires width (inch)	10
Rear tires height (inch)	25
Rear tires inner diameter (inch)	12
Length (mm)	2108
Width (mm)	1188
Weelbase (mm)	1285
Seat height (mm)	861
Ground clearance (mm)	190
Weight (kg)	287
Fuel capacity (L)	15.0
Speedometer	std
Odometer	std
Colour(s)	Red
