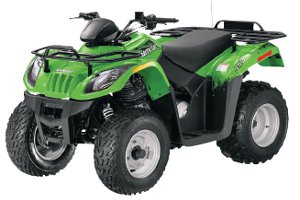

2011 Arctic Cat 150

Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum	Arctic Cat 150 2011
Manufacturer	Arctic-Cat
Year	2011
Model	150
Category	Youth
Warranty (months)	6
Engine type	4-stroke
Cylinder	1
Valvetrain	SOHC, 2 valves per cylinder
Cooling system	Air
Displacement (cc)	149.0
Bore (mm)	62.0
Stroke (mm)	49.5
Starter	Electric
Gearbox operation	Automatic CVT with reverse
Drive system	2WD
Final drive	Chain
Front suspension type	Single A-arm
Front suspension travel (mm)	89
Rear suspension type	Swingarm
Rear suspension travel (mm)	89
Front brakes	Drum
Rear brakes	Hydraulic disc
Front tires width (inch)	7
Front tires height (inch)	21
Front tires inner diameter (inch)	10
Rear tires width (inch)	10
Rear tires height (inch)	22
Rear tires inner diameter (inch)	10
Length (mm)	1775
Width (mm)	950
Height (mm)	1039
Weelbase (mm)	1115
Ground clearance (mm)	191
Weight (kg)	175
Fuel capacity (L)	8.7
Front rack capacity (kg)	11.3
Rear rack capacity (kg)	22.7
Towing capacity (kg)	136
Alternator capacity	12.5
Colour(s)	Lime
