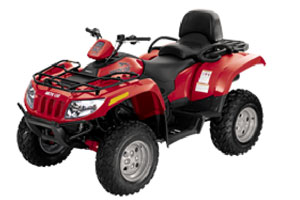

2009 Arctic Cat TRV 550 H1 EFI

Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum	Arctic Cat TRV 550 H1 EFI 2009
Manufacturer	Arctic-Cat
Year	2009
Model	TRV 550 H1 EFI
Category	Multi Purpose
Warranty (months)	6
Engine type	4-stroke
Cylinder	1
Valvetrain	SOHC, 4 valves per cylinder
Cooling system	Liquid with fan
Displacement (cc)	545.0
Bore (mm)	92.0
Stroke (mm)	82.0
Gearbox operation	CVT automatic with reverse
Drive system	2WD/4WD with low range
Front suspension type	Double A-arm
Front suspension travel (mm)	254
Rear suspension type	Double A-arm
Rear suspension travel (mm)	254
Front brakes	Hydraulic disc
Rear brakes	Hydraulic disc
Front tires width (inch)	8
Front tires height (inch)	25
Front tires inner diameter (inch)	12
Rear tires width (inch)	10
Rear tires height (inch)	25
Rear tires inner diameter (inch)	12
Length (mm)	2504
Width (mm)	1210
Height (mm)	1278
Weelbase (mm)	1473
Ground clearance (mm)	279
Weight (kg)	326
Fuel capacity (L)	20.8
Front rack capacity (kg)	45.4
Rear rack capacity (kg)	22.9
Towing capacity (kg)	477
Alternator capacity	25
Speedometer	std
Odometer	std
Colour(s)	Steel Blue Metallic, Red
