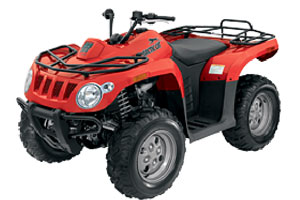

2009 Arctic Cat 366

Specifications

moto123 suggests: Compare this model Ask for a quote Discuss this model on the forum	Arctic Cat 366 2009
Manufacturer	Arctic-Cat
Year	2009
Model	366
Category	Multi Purpose
Warranty (months)	6
Engine type	4-stroke
Cylinder	1
Valvetrain	SOHC, 4 valves per cylinder
Cooling system	Air & oil
Displacement (cc)	366.0
Bore (mm)	81.0
Stroke (mm)	71.2
Gearbox operation	CVT automatic with reverse
Drive system	2WD/4WD with low range
Front suspension type	Double A-arm
Front suspension travel (mm)	178
Rear suspension type	Double A-arm
Rear suspension travel (mm)	178
Front brakes	Hydraulic disc
Rear brakes	Hydraulic disc
Front tires width (inch)	8
Front tires height (inch)	24
Front tires inner diameter (inch)	12
Rear tires width (inch)	10
Rear tires height (inch)	24
Rear tires inner diameter (inch)	12
Length (mm)	2057
Width (mm)	1117
Height (mm)	1184
Weelbase (mm)	1220
Ground clearance (mm)	254
Weight (kg)	259
Fuel capacity (L)	15.1
Front rack capacity (kg)	34
Rear rack capacity (kg)	68
Towing capacity (kg)	477
Alternator capacity	18
Speedometer	std
Odometer	std
Colour(s)	Green, Red
